Did you know? OEM have upgraded the 7mm pitch chain and camshaft to 8mm on the PSA 1.5 engines.
Upgraded Camshafts for the 1.5 BlueHDi DV5 Engine
In this video, BGA highlights the critical upgrade from 7mm to 8mm camshafts on the widely used 1.5 BlueHDi DV5 engine — a change that brings greater strength and reliability where it matters most.
Damage & Wear - Understand common failure points and how the 8mm camshaft improves durability.
Building & Timing - See how precise engineering ensures optimal engine performance.
Installation - Step-by-step guidance for fitting the upgraded camshaft with confidence.
This upgrade is especially valuable for high-mileage vehicles or those operating under heavy-duty conditions, helping to extend engine life and maintain consistent performance.
OE 7MM PROBLEM:

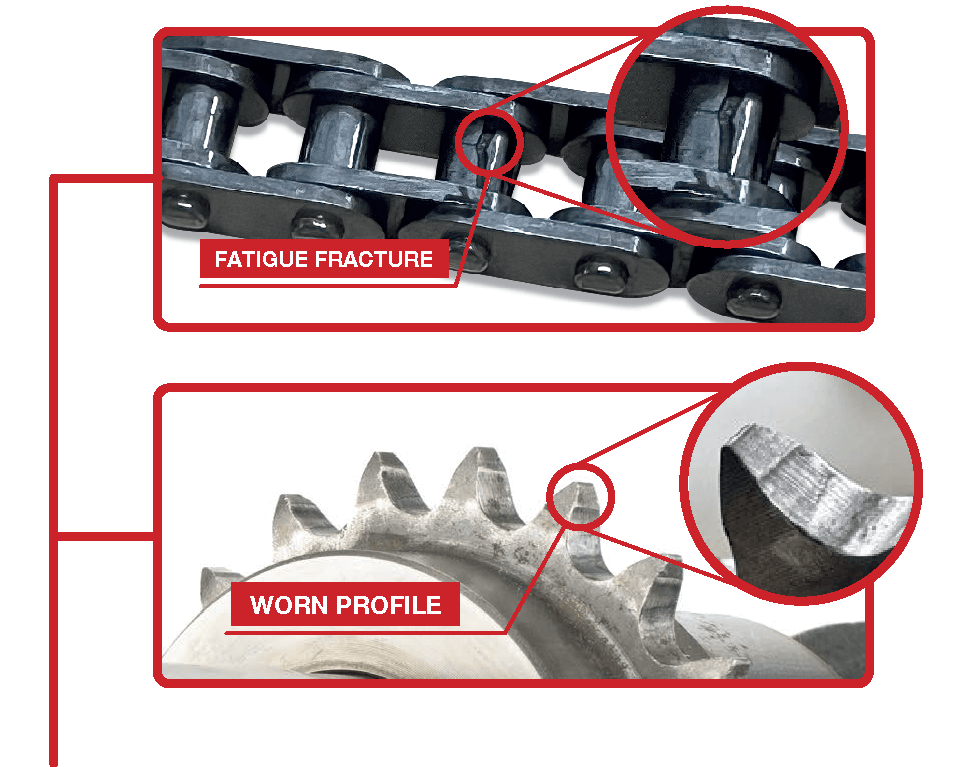

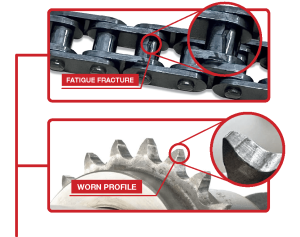

Modern engines like the PSA DV5 are equipped with EGR and DPF systems improving MPG and lowering emissions. This leads to harmful soot accumulation, causing premature wear on critical components such as the timing chain and camshafts.
BGA 8MM SOLUTION:

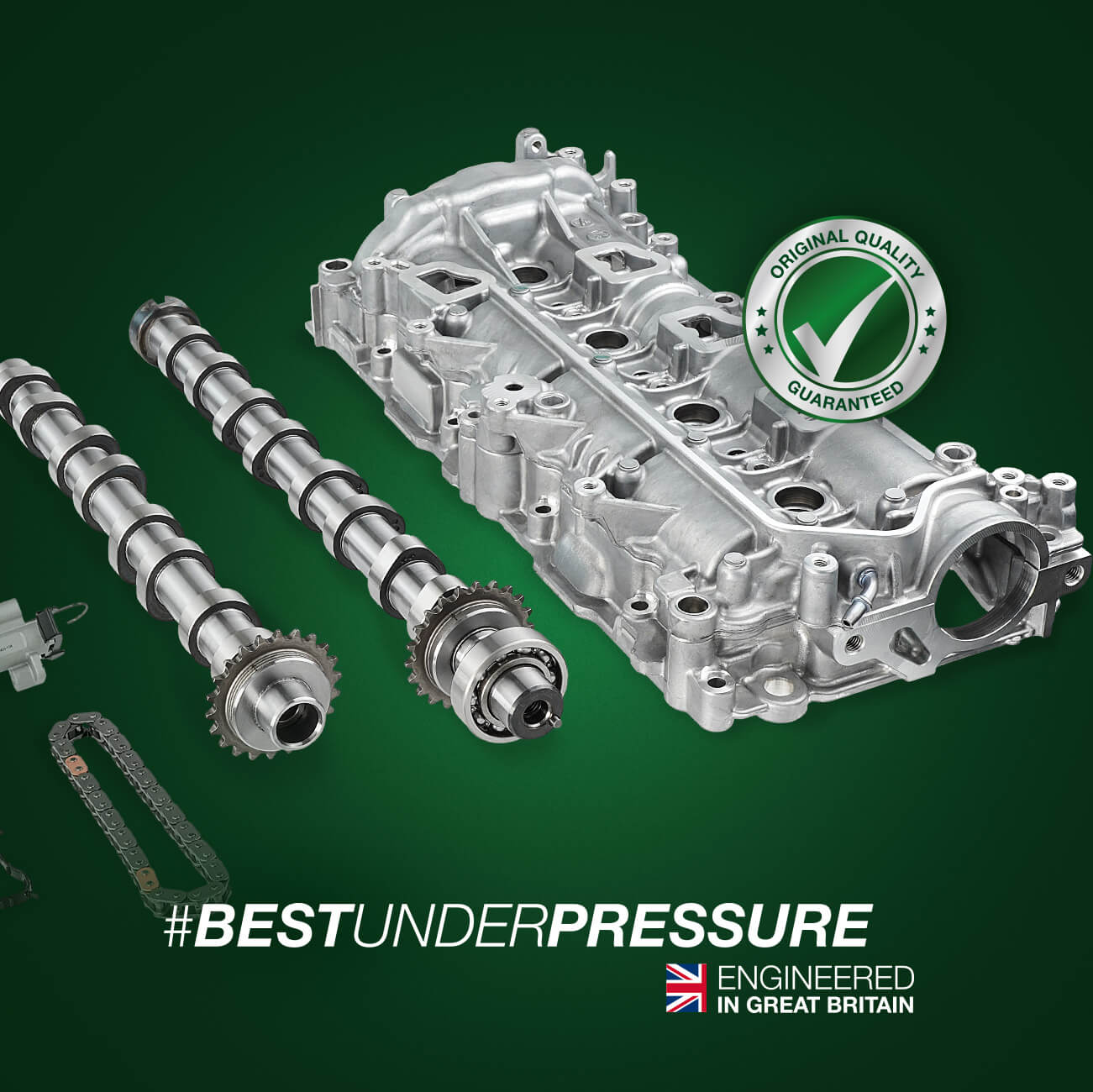

To combat premature wear of the Timing Chain and Camshaft, OE and BGA have upgraded these components by increasing the chain pitch from 7mm to 8mm, along with modified camshafts and a camshafts carrier.
BECOME A DISTRIBUTOR OF MARKET LEADING PARTS.
BECOME A DISTRIBUTOR OF MARKET LEADING PARTS.
IDENTIFYING A DV5 ENGINE 7MM OR 8MM TIMING SETUP.
OE systems are unclear about which Timing Setup was used during production, especially with upgrades around January 2023. Some pre-2023 vehicles may already have been upgraded under warranty.
Fortunately, identifying the fitted Timing setup is possible without removing the cover:

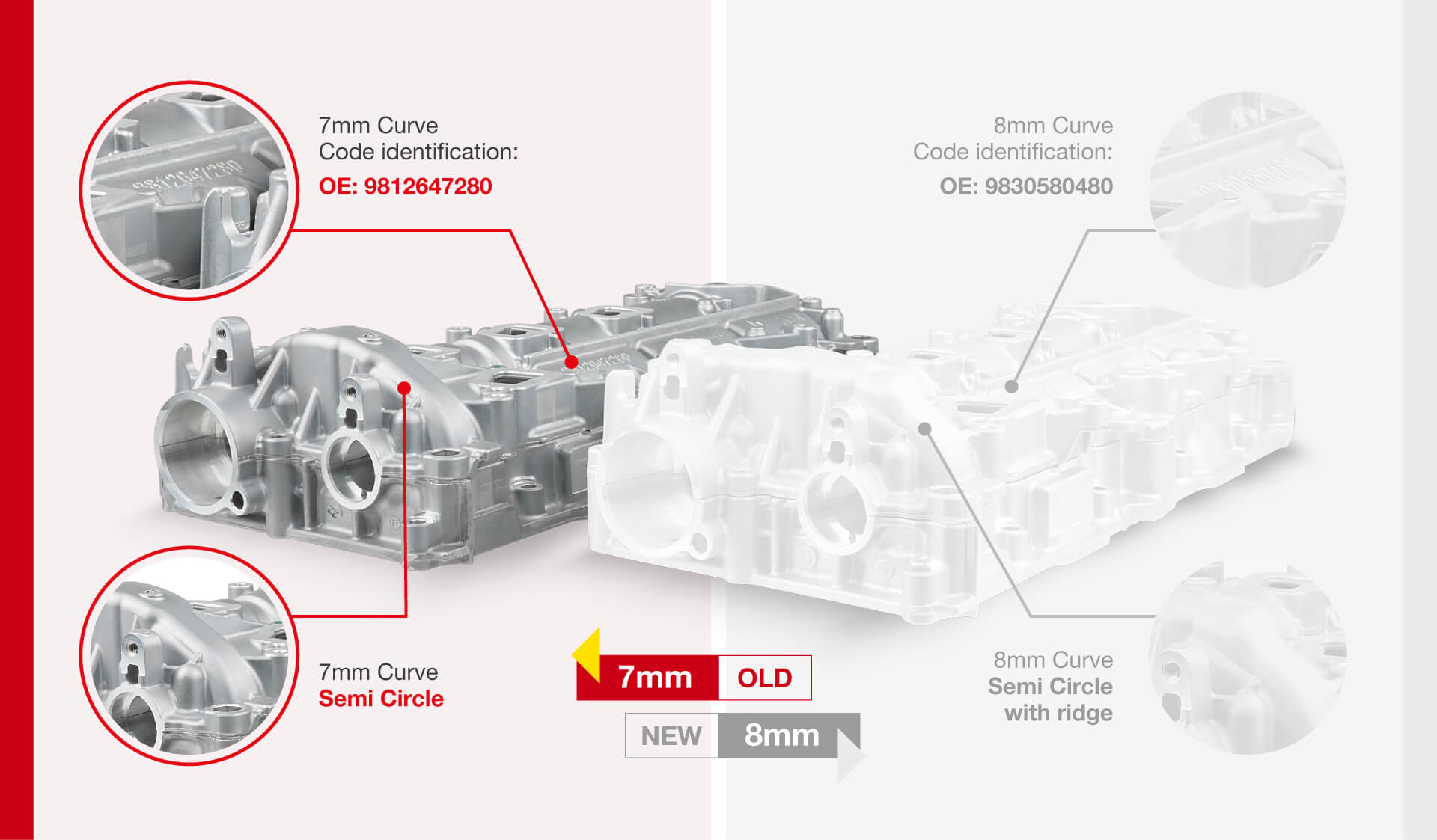

The Camshaft Carrier has been modified to accommodate the increase size of the timing setup.
Original covers will also have different OE numbers on the housing.

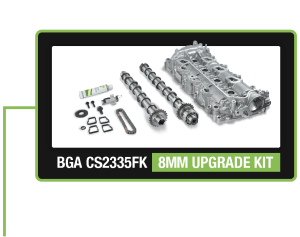

1.5 ECO BLUE (DV5) ENGINE – BGA 7 TO 8MM UPGRADE
VEHICLES APPLICATION
CITROËN
BERLINGO (ER_, EC_), BERLINGO Box Body/MPV (K9), C3 AIRCROSS II (2R_, 2C_), C3 AIRCROSS II Van (2C_, 2R_), C3 III (SX), C3 III Van (SX_, SY_), C4 CACTUS, C4 CACTUS Van (0B_, 0P_), C4 III (BA_, BB_, BC_) C4 SPACETOURER (3D_), C4 SPACETOURER Van (3D_), C4 X (BD_, BE_, BF_), C5 AIRCROSS (A_), C-ELYSEE (DD_), GRAND C4 SPACETOURER (3A_, 3E_), GRAND C4 SPACETOURER Van (3A_, 3E_), JUMPY III Bus (V_), JUMPY III Van (V_), SPACETOURER Bus (V_)
DS
DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_), DS 4 II (FR_, FB_, F3_), DS 7 (J4_, JC_), DS 7 Crossback (J4_, JR_, JC_)
FIAT
DOBLO Box Body/MPV (510_, 511_), DOBLO MPV (510_, 511_, 360_, 361_), SCUDO Van
FORD
ECOSPORT, FOCUS IV (HN), FOCUS IV Saloon (HM), FOCUS IV Turnier (HP), KUGA III (DFK), PUMA (J2K, CF7), TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV, TRANSIT CONNECT MPV, TRANSIT CONNECT V408 Box Body/MPV, TRANSIT COURIER V769 Box Body/MPV (N3P)
OPEL
ASTRA L (OV5), ASTRA L Sports Tourer (OV5), COMBO Box Body/MPV (K9), COMBO E Tour / Life (K9), CORSA F (P2JO), CORSA F Hatchback Van, CROSSLAND X / CROSSLAND (P17, P2QO), CROSSLAND X Van, GRANDLAND / GRANDLAND X (A18, P1UO), GRANDLAND X Van, MOKKA, VIVARO C Bus (K0), VIVARO C Van (K0), ZAFIRA LIFE Bus (K0)
PEUGEOT
208 HATCHBACK Van (CR_), 208 I (CA_, CC_), 208 II (UB_, UP_, UW_, UJ_), 301, 308 HATCHBACK Van (LB_), 308 II (LB_, LP_, LW_, LH_, L3_), 308 III (FB_, FH_, FP_, F3_, FM_), 308 SW II (LC_, LJ_, LR_, LX_, L4_), 308 SW II ESTATE Van (LC_), 308 SW III (FC_, FJ_, FR_, F4_, FN_), 508 II (FB_, FH_, F3_), 508 SW II (FC_, FJ_, F4_), 2008 I (CU_), 2008 I Van (CU_), 2008 II (UD_, US_, UY_, UJ_, UR_, UC_), 3008 II SUV (MC_, MR_, MJ_, M4_), 3008 Van (MR_, MC_, MJ_), 5008 II (MC_, MJ_, MR_, M4_), 5008 II Van (MC_, MJ_), EXPERT Bus (V_), EXPERT Van (V_), PARTNER Box Body/MPV (K9), RIFTER, TRAVELLER Bus (V_)
TOYOTA
PROACE Bus (MDZ_), PROACE CITY Box Body/MPV (BPZ_), PROACE CITY VERSO MPV (BKY_), PROACE Van (MDZ_), PROACE VERSO Bus (MPY_)
VAUXHALL
ASTRA Mk VIII (L) Sports Tourer, ASTRA Mk VIII (L), COMBO Mk IV (E) Box Body/MPV (K9), COMBO Mk IV (E) Life (K9), CORSA Mk V (F), CROSSLAND X / CROSSLAND (P17), GRANDLAND X / GRANDLAND (A18), MOKKA, VIVARO C Van (K0), VIVARO LIFE Bus (K0)
